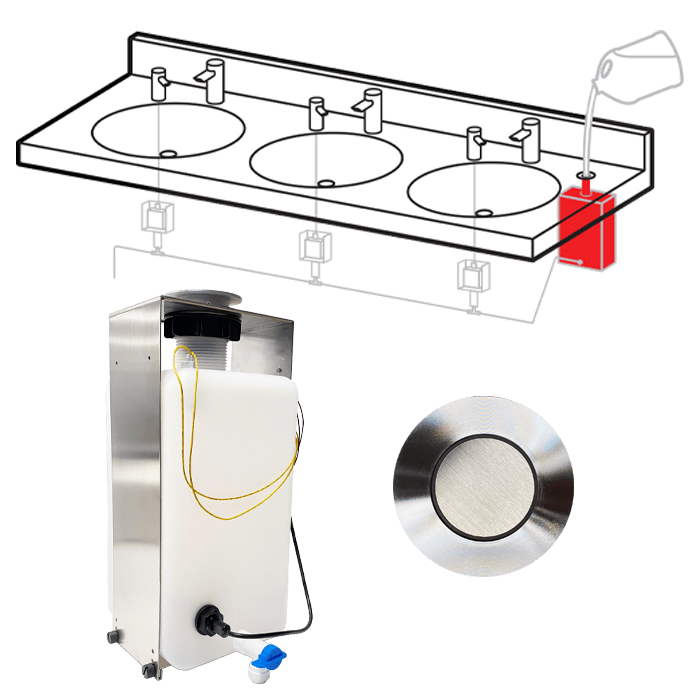

Top Fill Illustration Tank Web


Top Fill Port With Multi-Feed Tank for 0388 & 0389

Save time and save your knees with ASI’s newest Top Fill Multi-Feed soap dispensing system. Fill up to 12 automatic liquid or foam soap dispensers with one pour using the counter fill port connected to a large capacity tank−a perfect addition to any high traffic washroom.

This tank 1.6 gal (6L) tank is made of seamless molded plastic for leak-proof operation and is transparent to show soap level. Tank is mounted under the vanity, held in place by a mounting bracket, and is powered by an AC adapter. The polished chrome top fill port is equipped with sensors and LED to indicate low soap level, overfill protection, and battery conditions.


For battery powered operation, purchase 0385-BP separately.


How it works:

This tank supplies a dispenser control module/pump through a supply tube connected to the tank shutoff valve. A multi-feed dispensing system is created when additional dispensers are added.

*Maximum 6 dispensers on each side of soap tank, see Installation Guide and Owner’s Manuals for proper installation.


  • 6L container and mounting bracket
  • Counter fill port with anti-vandalism snap-in cover
  • Suction tool to remove fill port cover
  • 72-ACA adapter
  • Funnel (with extension tubes)
