8370

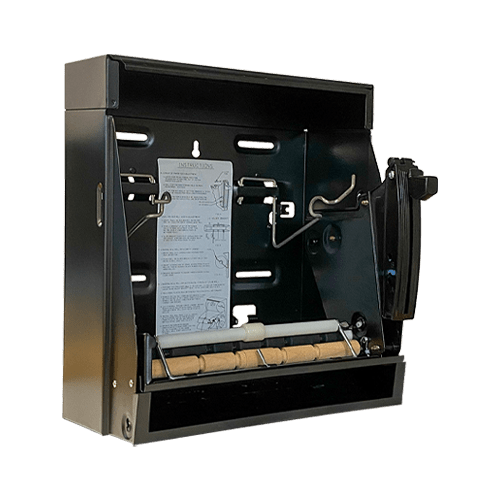

MANUAL LEVER OPERATED TOWEL DISPENSER MECHANISM


Holds one 8″ or 9″ wide x 8″ diameter (203 or 229 x 203 mm) standard towel roll up to 800 ft. (244 m) long and one 8″ or 9″ wide (203 or 229 mm) stub roll up to 4″ diameter (102 mm). Unit is comprised of a baked enamel coated steel housing and mechanism base plate with internal plated steel, plastic, rubber, wood and stainless steel parts. Lever operated drive mechanism dispenses roll towels in one (1) of three (3) preset lengths chosen by owner.


Technical Data Sheet

Product Specifications

12-1/8″ x 14-7/8″ x 9-3/8″ (308 x 377 x 238 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
