9018_ASI-HorizontalRecessedMounted

9018

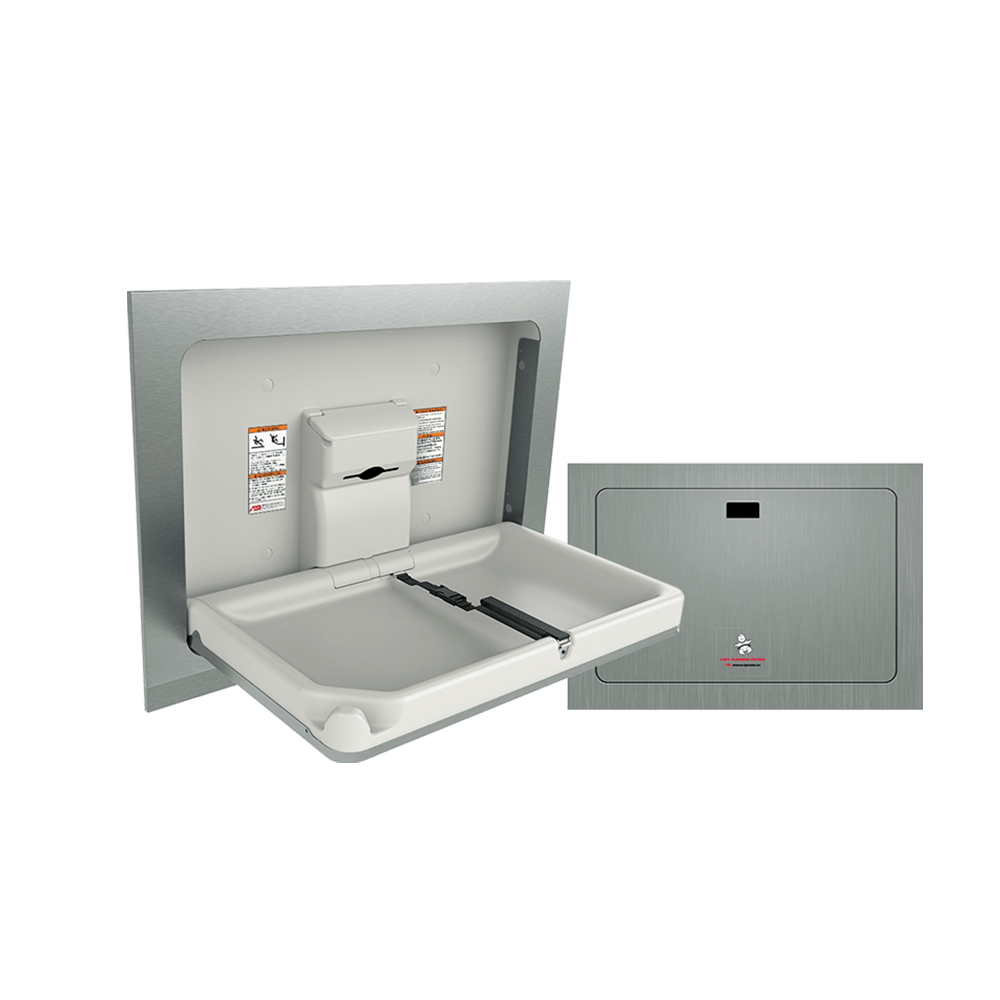

Baby Changing Station, HORIZONTAL – STAINLESS STEEL, Recessed


This horizontal station has a door facing and collar made from 18 gauge 304 stainless steel. Fabricated of FDA-approved fungus and bacteria-resistant plastic. Unit complies with 2010 ADA Accessibility Standards and supports a static load of 300 lbs. (136 kg) and be tested in excess of 350 lbs (159 kg).

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Closed:

39-5⁄32″ x 28-1/4″ x 3⁄8″ (995 x 718 x 10 mm)



Open:

39-5/32” x 28-1/4” x 18-1/8” (995 x 718 x 460 mm)



Wall Opening:

35-1/2″ x 24-1/2″ x 4″ min (902 x 622 x 102 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
