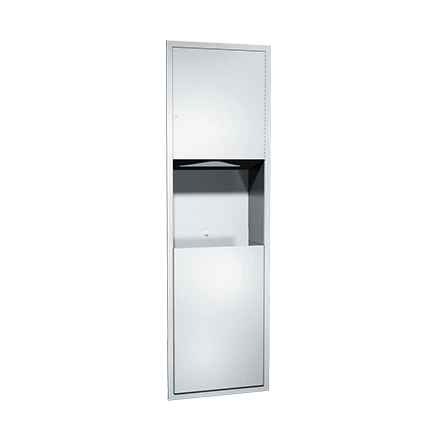

04697 ASI Recessed Paper Towel Dispenser and Waste Receptacle

04697

Paper Towel Dispenser & Waste Receptacle – Recessed


Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold paper towels. 12 gal. (46 L) stainless steel waste receptacle. Adjustable guide provided to allow dispensing of multi-fold or C-fold paper towels.

Paper towels are manually withdrawn through dispensing slot. An adjustable towel adapter ensures that towels feed properly until depleted. Refill dispenser by unlocking door and replacing towels for an empty or partially empty unit. Locking compartment and receptacle retainer prevents unauthorized access or removal.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:

17-1/4″ x 56″ x 7-1/4″ (438 x 1422 x 184 mm)



Wall Opening:

15-3/4″ x 54-1/2″ x 7-1/4″ min. (400 x 1384 x 184 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
