0197-1-93

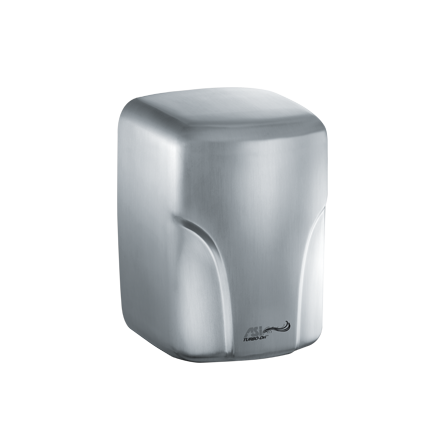

TURBO-Dri™ High-Speed Hand Dryer (110-120V) – 93 Satin Stainless Steel


Fast drying, <15 seconds, and powerful, yet quiet, with 60-second auto shut off; automatic operation using infrared sensor with auto-resetting thermostat. Heavy-duty, one-piece-formed unit. Satin Stainless Steel finish.

Finish Options: Satin Stainless Steel

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

  • Quick drying — less than 15 seconds
  • Operates automatically using infrared sensor
  • Auto-resetting thermostat
  • 60-second automatic shut off
  • Cover fabricated of heavy-duty, one-piece-formed stainless steel

Motor: 1 HP, 7-18 krpm, adjustable, brush type, dual ball bearings

• 0197-1: 120 VAC, 50/60 Hz. 1.4 kW
Air Output: 68 CFM max – Temp: 140° F (60° C)
Output Air Speed: 145.4 mph (213 ft/s) [65 m/s {213 km/h}] – 213 mph (312 ft/s) [95 m/s {342 km/h}]
Heater: 350 – 700 Watts, adjustable by owner
Current: 14.6 Amps @ 120 VAC;
7.3 Amps @ 240 VAC
Dry Time: Under 15 seconds

Min: 61.2 dB-A @ 2M, Max: 65.2 dB-A @ 2M
Dry Time: Approx. 15 seconds

8-1/16″ x 11-19/64″ x 7-5/64″ (205 x 287 x 180 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
