0332-D

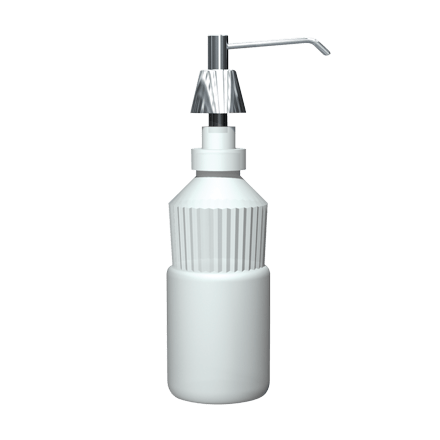

Lavatory Basin Liquid Soap Dispenser 6” Spout, 4” Shank – 34 oz.
Corrosion-resistant valve with stainless steel spout and chrome plated brass escutcheon plate. Dispenses 34 oz. (1.0 liter) of liquid and lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan. Soap container is translucent, shatter-resistant polyethylene. Vandal-resistant spout shall rotate 360° without damage to unit.
Capacity 34 oz. (1.0 L). Spout projection 6″ (152 mm).
- Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
- Viscosity Range (mPa·s or cP): 50 – 2500
- pH Range: 5.5 ~ 8.5
A complete Dispensing Chart and other relevant technical documents are available for all dispensers.
BIM Objects
BIM Objects
BIM Objects
BIM Objects
BIM Objects
Technical Data Sheet
Product Specifications
3-7⁄16″ x 10-21⁄32″ (87 x 271 mm)
American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
