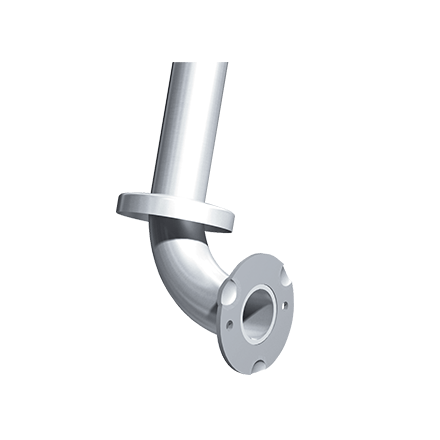

3800_ASI-SeriesExposedMounting@2x

3800 Series

1-1/2″ DIA – Snap Flange Grab Bars


Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.

SNAP FLANGE – 3800 SERIES – TUBING 1-1/2″ DIAMETER

Please select a Model Option below for additional information on each configuration.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

1 1/2″ (38 mm) O.D.

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
